204x48x150mm Extruded Large Aluminum Enclosure With Heatsink Sides In Black Silver Color
|
|
Подробная информация о продукте:
Оплата и доставка Условия:
|
Подробное описание продукта
| Product: | Extruded Aluminum Enclosure | Color: | Matt black and Silver, can be customized |
|---|---|---|---|
| External size: | 204*48*150mm, Length can be changed | Application: | Electronic Projects like switch/converter, power supply units, audio amplifier projects, ham radio projects,etc |
| Material: | Aluminum 6063 | Surface treatment: | Anodized and sandblasting |
| Type: | Aluminum Cooling Case | Custom: | cutouts, LOGO, Laser, etc. |

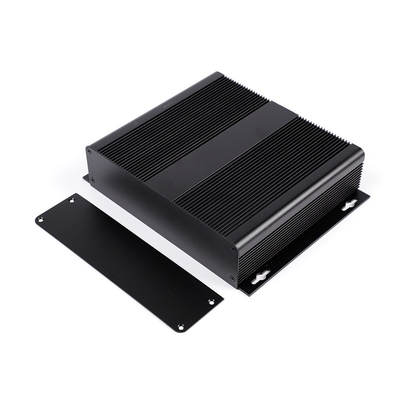

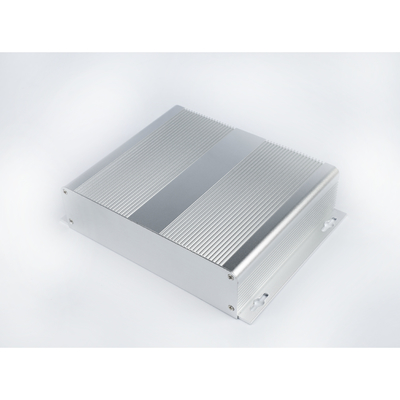

204x48x150mm Extruded Large Aluminum Enclosure With Heatsink Sides In Black Silver Color
This Extruded Aluminum cooling case size is 204*48*150mm, Length can be changed, with anodized sandblasting surface finish and black color in stock, other surface such as brushed and colors can be customized, this heatsink cooling case is suitable to fit Width 172mmm Printed Circuit Boards.

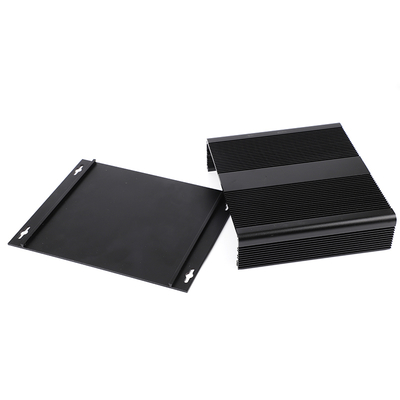

The sliding cover design allows the top part of the extrusion slides smoothly, easy to access inside to mount parts or components
This heat sink case made of extruded aluminum AL6063, it has excellent electromagnetic shielding performance, good heat dissipation performance.
This extruded electronic Aluminum Enclosure are widely use for instrument, electric power,telecommunication, radio and television, medical device,network, hotel and military supply.
Description for this Aluminum heatsink case
- Extruded aluminum enclosure with heat-sink top and heatsink sides.
- Sturdy extruded case construction
- Black / Silver sandblast / matte anodized finish
- Built-in slots/grooves are for holding PCB or circuit boards.
- Excellent electromagnetic shielding performance, good heat dissipation performance
- Aluminum PCB Box with Flanged Ear Body for Electronics Development Black
- Customization is welcomed, such as cut-out/silkscreen/laser engraving/sticker/Tapping/Laser cutting Or customized as per your drawing or sample.
Paremeters of this Extruded Aluminum Heatsink Wall-mount Enclosure
| Model NO. | E18048 |
| Structure | Split body Aluminum Enclosure |
| Outer Size | 204*48*150mm (W*H*L) L can be change |
| PCB width | 172mm |
| Surface treatment | Anodized |
| Color | Black, silver, can be customized |
| Components | The top and bottom halves aluminum enclosure, end plates, and self-tapping screws |
| Material | Extrusion Aluminum 6063 |
| Cusomization | color ,cutout, laser silkscreen,label, drill holes, change length |
Drawing
Over 200 extruded aluminum enclosures available, your OEM / ODM order is highly welcomed.
